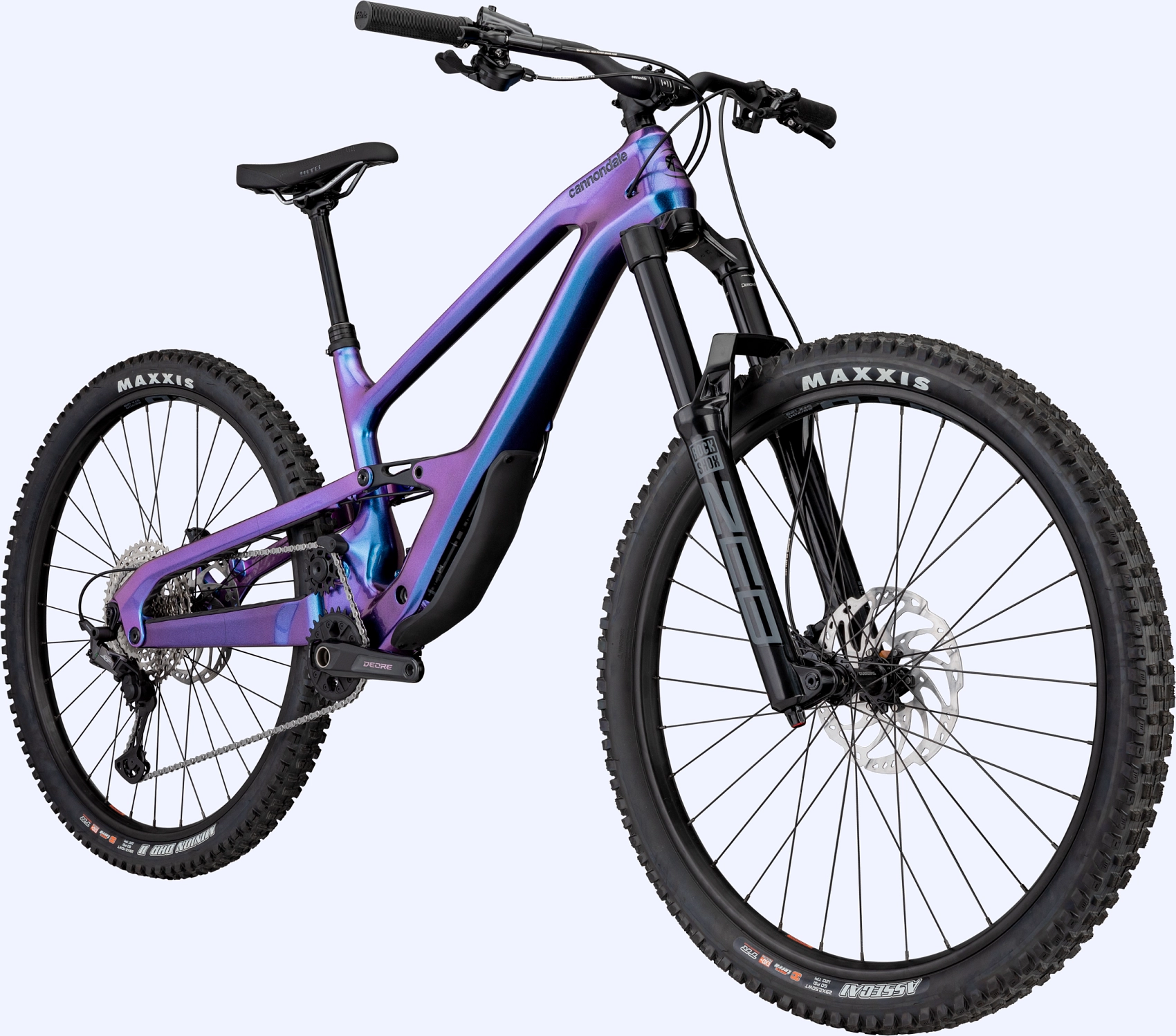

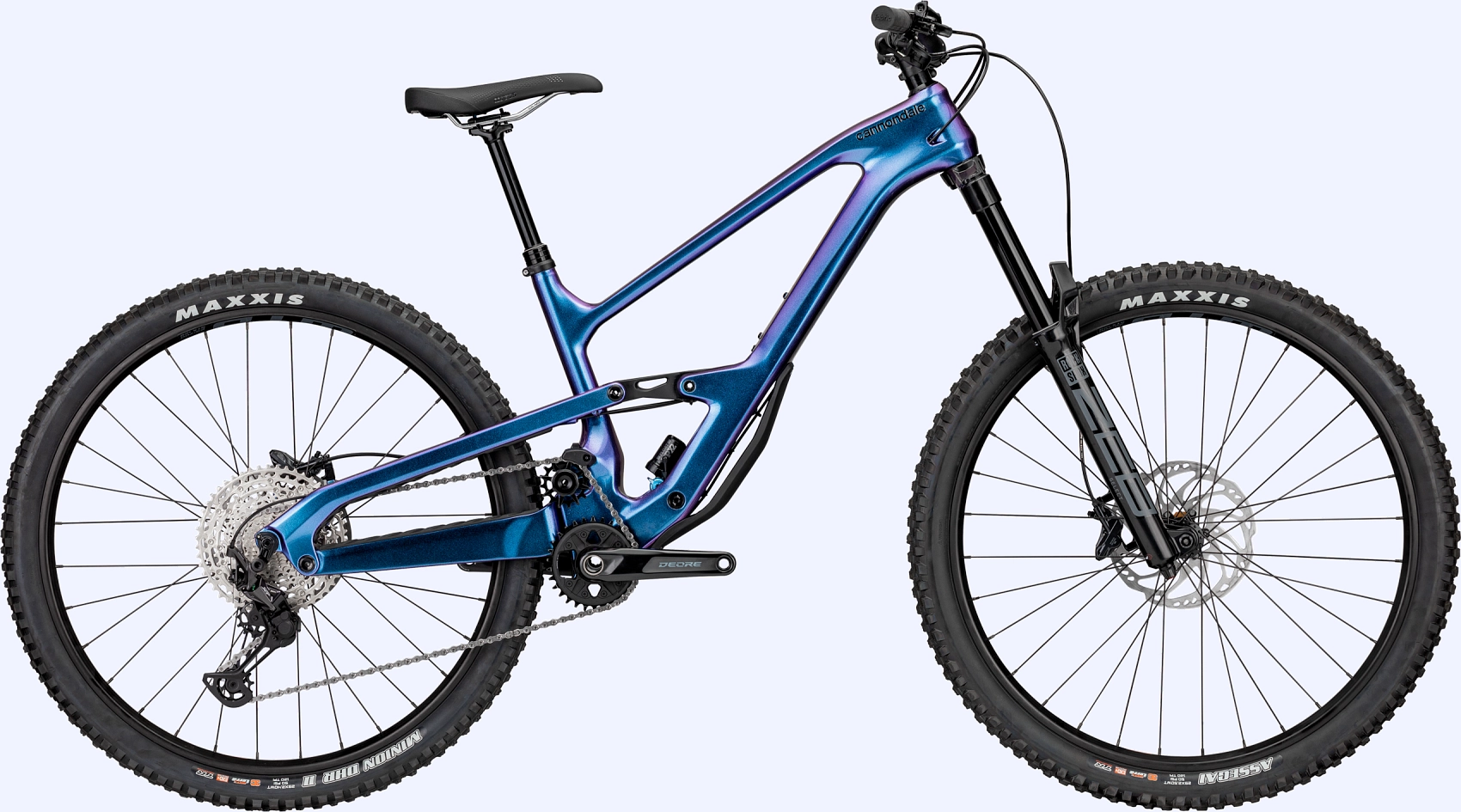

Cannondale Jekyll 2, purple haze, XL

Plattform: Cannondale Jekyll
Modell: Jekyll 2 C21202U
Modellnummer: C21202U

RAHMENSET

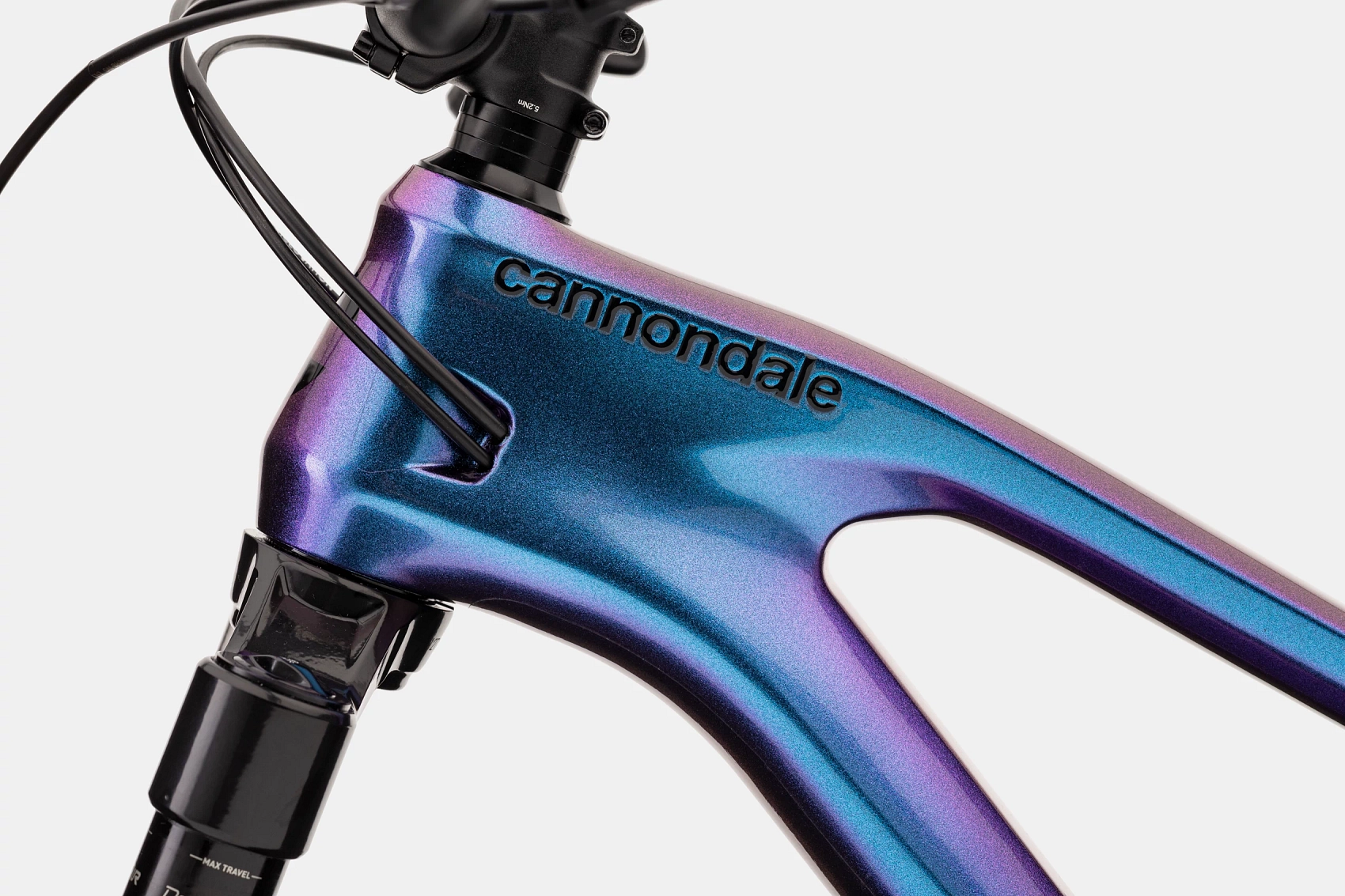

Rahmen: 165mm travel, Carbon, Proportional Response Tuned, Guidler idler pulley/chainguide, BSA 73, ISCG05, tapered head tube, Ai Offset
Gabel: RockShox Zeb Select, 170mm, 15x110mm thru-axle, tapered steerer, 44mm offset
Steuersatz: Integrated Sealed Bearing, Tapered
Rear Shock: Fox Float DPX2 Performance EVOL, 205×65 Metric Trunnion, Air, 3-Pos adj.
Rahmengröße: XL
Rahmenmaße: siehe Cannondale

ANTRIEB

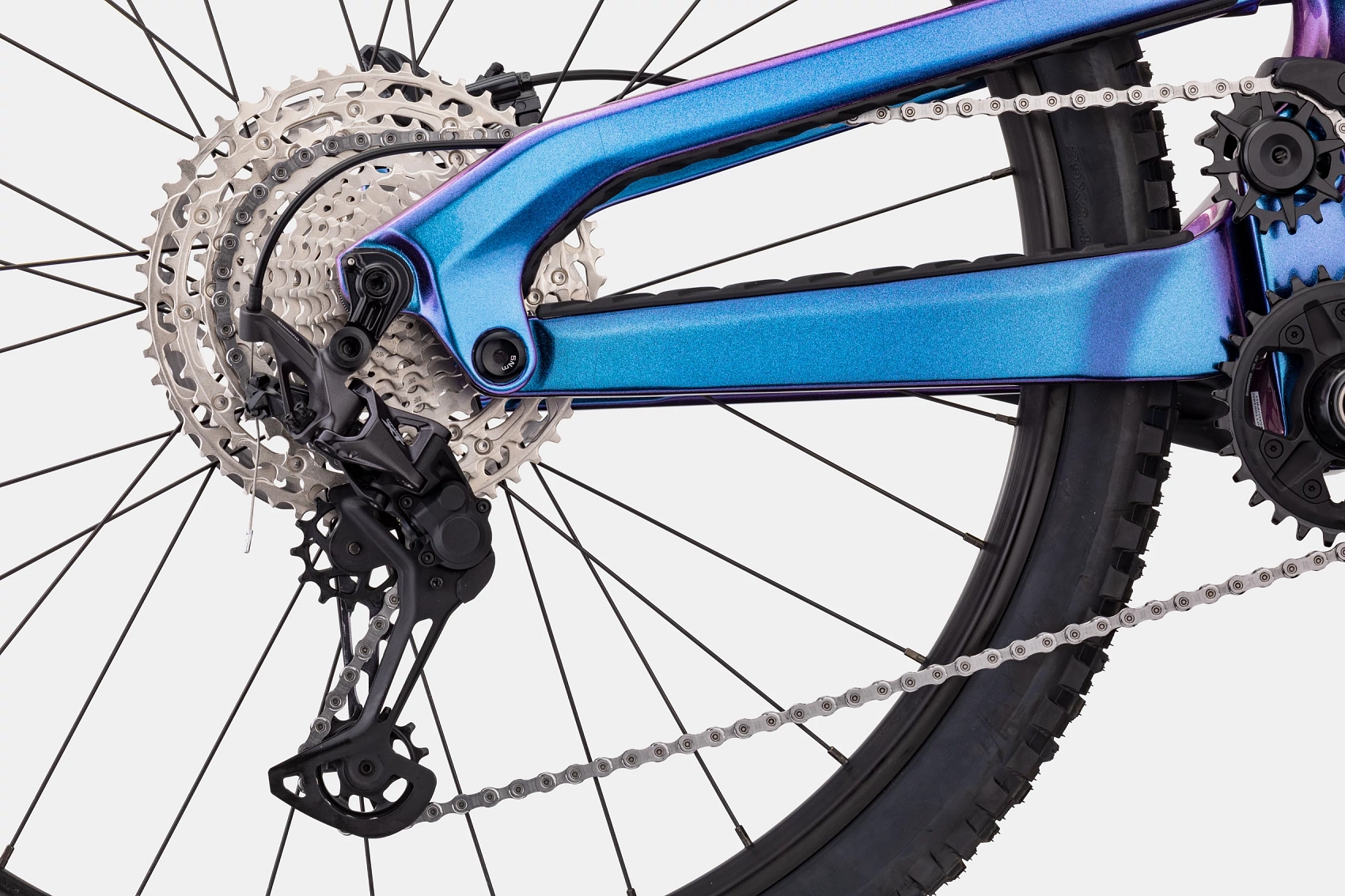

Schaltwerk: Shimano Deore M6100
Schalthebel: Shimano Deore M6100, 12-speed
Kette: Shimano Deore 6100, 12-speed

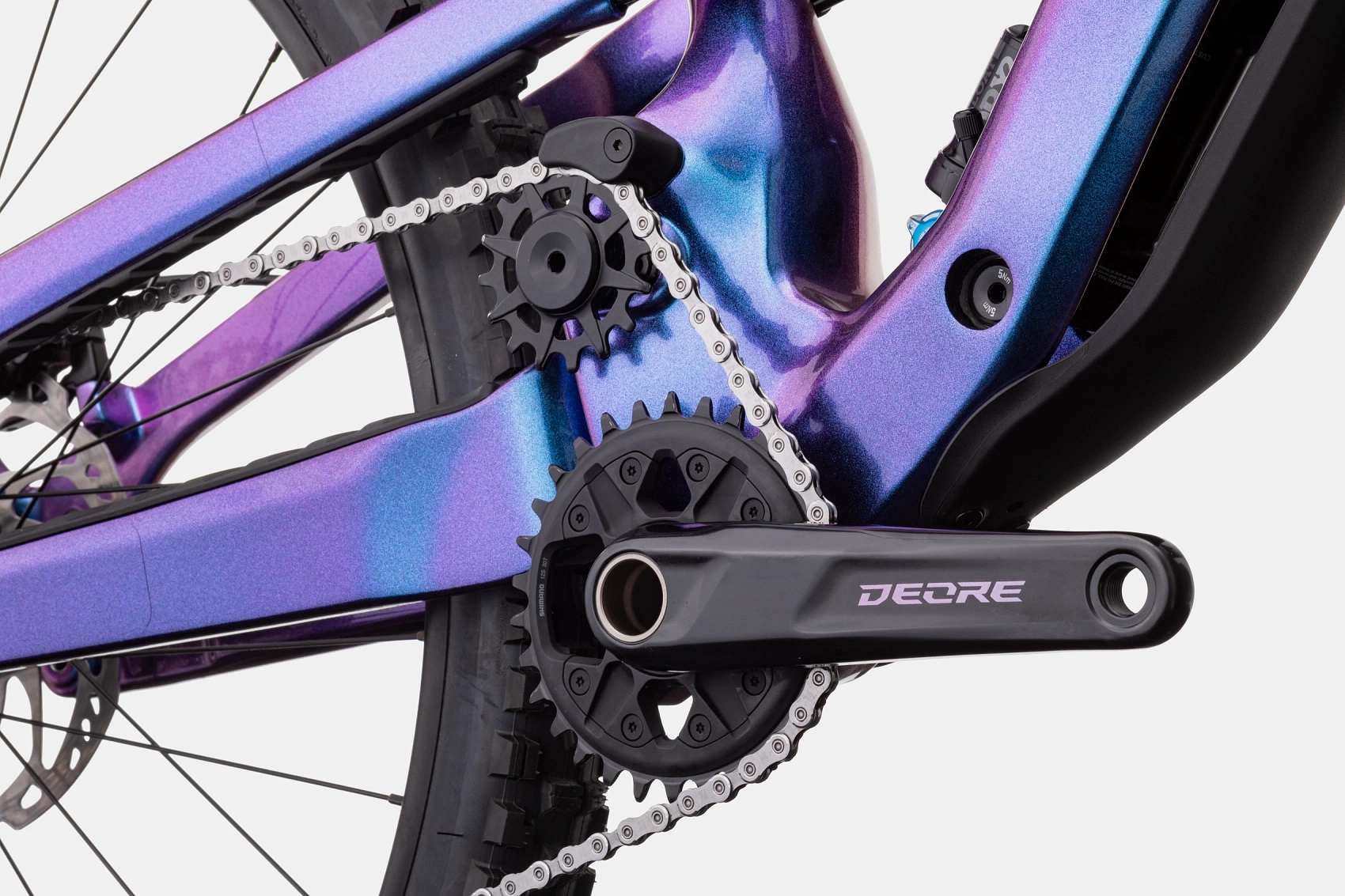

Kurbel: Shimano Deore 6120, 30T, 55mm CL
Kassette: Shimano Deore M6100, 10-51, 12-speed
Bottom Bracket: Shimano Deore BSA 73

BREMSEN

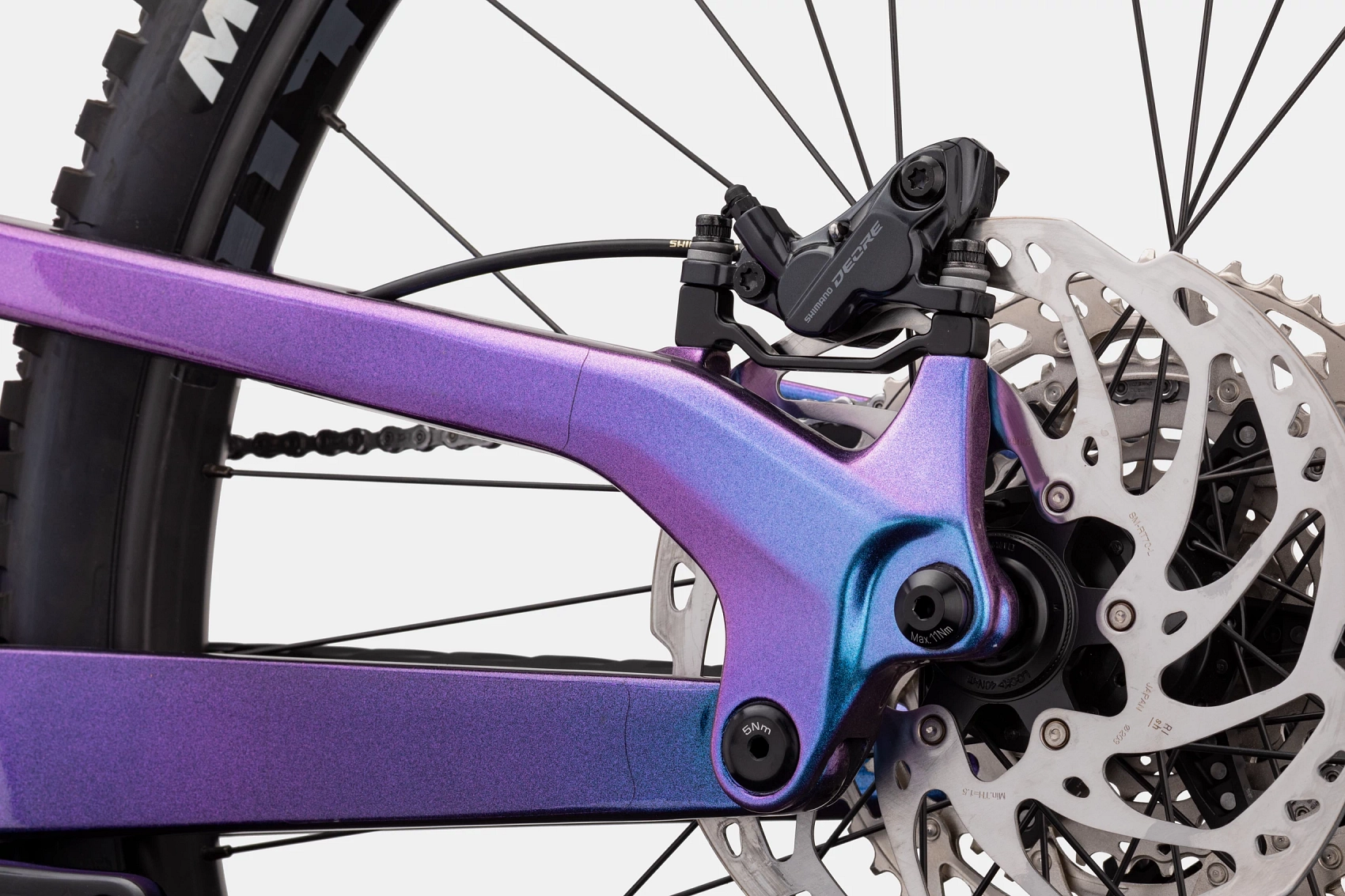

Bremsen: Shimano M6120 hydraulic disc, 203/203mm RT64 rotors
Bremshebel: Shimano M6120 hydraulic disc

LAUFRÄDER

Felgen: WTB STX i30 TCS, 32h, tubeless ready
Speichen: Stainless steel, 14g
Reifengröße: 2.5
Reifendimension: 29
Naben: (F) Shimano MT400, 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle
Reifen: (F) Maxxis Assegai, 29×2.5″, Dual compound, EXO+ puncture protection, tubeless ready, (R) Maxxis Minion DHR II, 29×2.4″, EXO+, tubeless ready
Vorderreifen: Maxxis Assegai, 29×2.5″, Dual compound, EXO+ puncture protection, tubeless ready
Hinterreifen: Maxxis Minion DHR II, 29×2.4″, EXO+, tubeless ready

KOMPONENTEN

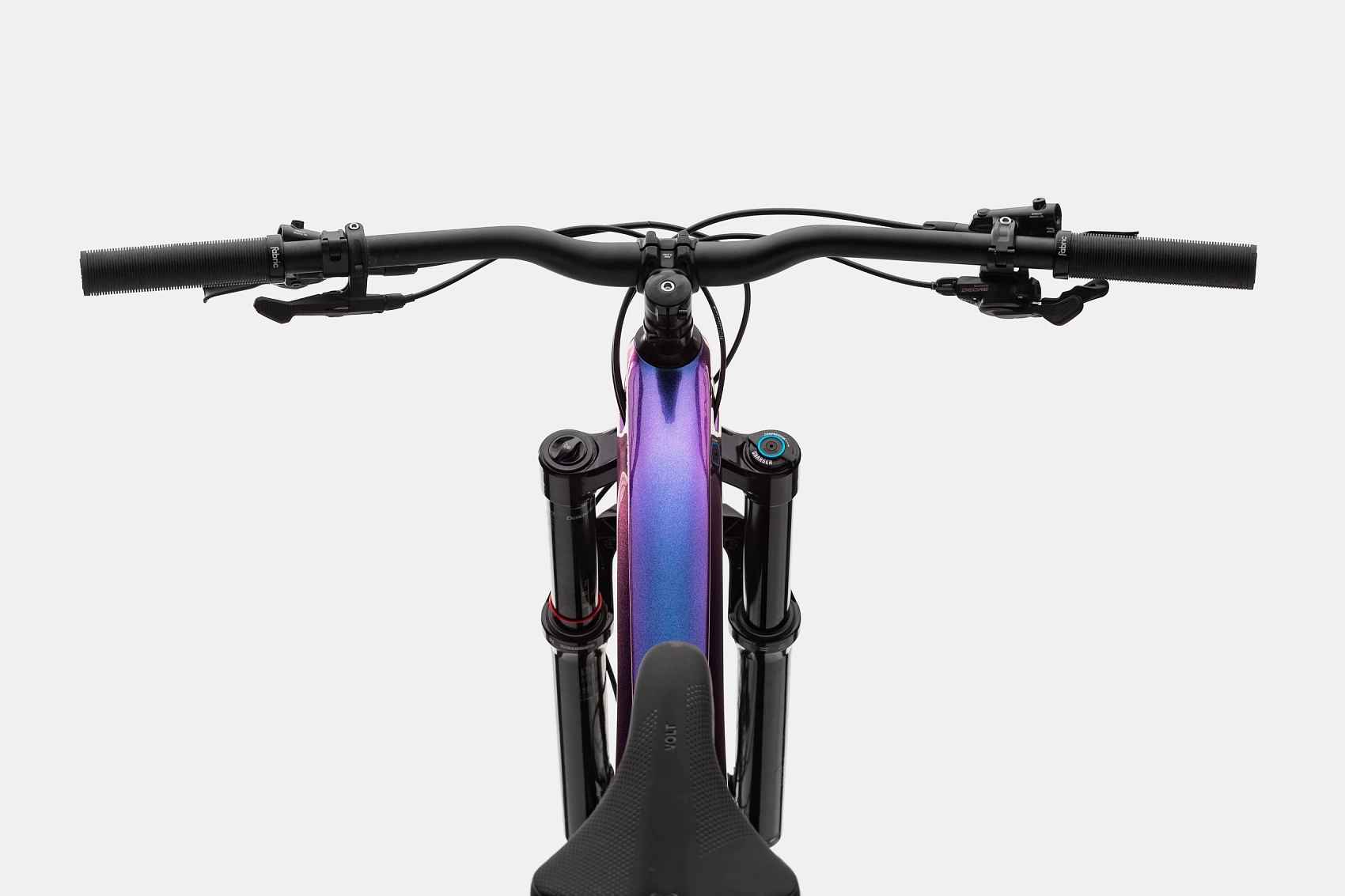

Lenker: Cannondale 3 Riser, 6061 Alloy, 30mm rise, 8° sweep, 6° rise, 780mm
Vorbau: Cannondale 3, 6061 Alloy, 31.8, 0°
Griffe: Cannondale TrailShroom
Sattel: Cannondale Stage 3
Sattelstütze: TranzX dropper, internal routing, 31.6, 130mm (S), 150mm (M-XL)
